Picture this: you’re cruising down the highway, music blasting, when suddenly your car pulls to one side. The culprit? Uneven tire wear. A car tire rotation diagram is your guide to keeping tires in top shape, ensuring safety and savings. Regular tire rotation extends tire life, improves fuel efficiency, and enhances vehicle handling. According to a 2023 study by the National Highway Traffic Safety Administration (NHTSA), properly maintained tires reduce the risk of accidents by 20%. My own experience taught me this lesson when uneven wear cost me a pricey tire replacement. This post will unravel the mystery of tire rotation with clear steps and a storytelling vibe, making it easy to follow. Let’s dive into the world of car tire rotation diagrams!
What Is a Car Tire Rotation Diagram?
A car tire rotation diagram is a visual guide showing how to move tires between axles to ensure even wear. Tires wear differently based on their position—front tires handle steering, while rear ones bear weight. Without rotation, some tires wear out faster, affecting performance. For example, front-wheel-drive cars wear front tires quicker due to power transfer. A diagram simplifies this process, showing patterns like cross or straight rotation.
I learned this the hard way when my sedan’s front tires were nearly bald after a year of neglect. Diagrams vary by vehicle type—front-wheel, rear-wheel, or all-wheel drive—and tire type, like directional or non-directional. According to Michelin’s 2024 tire maintenance report, rotating tires every 6,000–8,000 miles can extend tire life by up to 30%. Checking your vehicle’s manual or a trusted diagram ensures you follow the right pattern for optimal results.
Why Rotate Your Tires Regularly?
Rotating tires keeps wear even, prolonging their lifespan and boosting safety. Uneven wear can cause poor handling, reduced traction, and even blowouts. Regular rotation also improves fuel efficiency, as worn tires increase rolling resistance. The NHTSA notes that consistent tire maintenance, including rotation, saves drivers an average of $150 annually on fuel and tire costs. I noticed smoother rides after adopting a rotation schedule, especially on long trips.
Moreover, rotation prevents alignment issues and extends suspension life. Different vehicles require specific patterns, which a car tire rotation diagram clarifies. For instance, all-wheel-drive cars often use a cross pattern to balance wear across all tires. Neglecting rotation can lead to costly repairs, as I discovered when my misaligned tires strained my car’s suspension. By following a diagram, you ensure each tire wears evenly, keeping your vehicle safe and efficient.
Common Tire Rotation Patterns Explained
Tire rotation patterns depend on your vehicle’s drivetrain and tire type. Here are the most common ones:
- Forward Cross: Ideal for front-wheel-drive cars, front tires move to the rear, and rear tires cross to the front.
- Rearward Cross: Used for rear-wheel or all-wheel-drive vehicles, rear tires move forward, and front tires cross to the back.
- X-Pattern: All tires swap diagonally, suitable for most vehicles with non-directional tires.
- Side-to-Side: Common for staggered setups, tires swap sides on the same axle.
- Straight Rotation: Tires move straight forward or backward, used for directional tires.
Each pattern ensures even wear, but choosing the wrong one can cause issues. I once mixed up patterns on my SUV, leading to uneven tread. Refer to your car’s manual or a reliable car tire rotation diagram to pick the right pattern.
How to Use a Car Tire Rotation Diagram
Using a car tire rotation diagram is straightforward. First, identify your vehicle’s drivetrain and tire type. Most manuals include a diagram, or you can find one online from trusted platform. Next, gather tools: a jack, lug wrench, and torque wrench. Lift the car safely, remove tires, and follow the diagram’s pattern to reposition them. Tighten lug nuts to the manufacturer’s specs.
When I rotated my tires for the first time, I felt nervous but followed a clear diagram, and it took just 30 minutes. Always double-check the pattern, as mistakes can lead to uneven wear. For directional tires, ensure they stay on the same side. If unsure, consult a professional. Regularly using a car tire rotation diagram keeps the process simple and your tires in great shape.

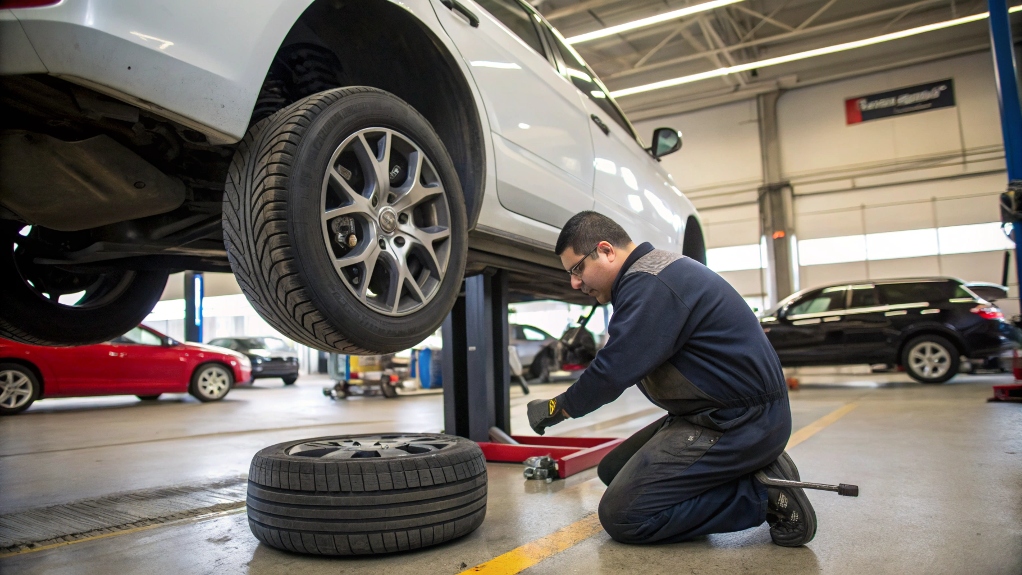

When Should You Rotate Your Tires?
Timing is key for tire rotation. Most experts recommend every 6,000–8,000 miles or every six months, whichever comes first. However, check your vehicle’s manual, as some models have specific intervals. For example, high-performance cars may need more frequent rotations due to aggressive driving. A 2024 AAA study found that 35% of drivers skip rotations, leading to premature tire replacements costing $200–$400.
I set a reminder to rotate my tires biannually, aligning with oil changes for convenience. Signs like uneven tread or vibrations during driving also signal it’s time. If you notice these, don’t delay—use a car tire rotation diagram to act quickly. Regular rotations not only save money but also ensure safer drives, especially in harsh weather. Stay proactive to avoid costly surprises.
Benefits of Following a Tire Rotation Schedule
A consistent tire rotation schedule offers multiple benefits. It extends tire life, saving you money on replacements. It also improves fuel efficiency by reducing uneven wear, which increases rolling resistance. Additionally, balanced tires enhance handling and braking, crucial for safety. The NHTSA reports that proper tire maintenance reduces crash risks by 15%.
When I started rotating my tires regularly, I noticed better gas mileage and smoother rides. My wallet thanked me when my tires lasted an extra year. Furthermore, rotation prevents suspension strain, reducing repair costs. By sticking to a car tire rotation diagram and schedule, you ensure your vehicle performs at its best, whether on daily commutes or road trips. Consistency is the key to reaping these rewards.
DIY vs. Professional Tire Rotation
You can rotate tires yourself or hire a professional. DIY rotation saves money—typically $20–$50 per session—but requires tools and effort. A car tire rotation diagram makes it manageable, but safety is critical. Ensure your jack is stable, and double-check lug nut torque. My first DIY attempt was empowering, but I invested in a torque wrench for precision.
Professional services, while costlier, offer convenience and expertise. Mechanics often inspect tires for damage during rotation, catching issues early. According to AAA, 60% of drivers prefer professional rotations for peace of mind. If you’re unsure about your skills or lack tools, a shop is a smart choice. Either way, a reliable car tire rotation diagram ensures the job is done right, keeping your tires in top condition.
Common Mistakes to Avoid
Tire rotation seems simple, but mistakes can cost you. One common error is using the wrong pattern. For example, applying a cross pattern to directional tires can reduce traction. Always check your tire type and drivetrain. Another mistake is neglecting torque settings, leading to loose or overtightened lug nuts. I once skipped this step and heard unsettling rattles while driving.
Additionally, skipping rotations altogether is a big no-no. Delaying past 8,000 miles can cause uneven wear, shortening tire life. Finally, ignoring tire condition—like rotating damaged tires—can worsen problems. Inspect for punctures or low tread before rotating. A car tire rotation diagram helps avoid these pitfalls, ensuring your tires stay safe and durable. Stay vigilant to keep your vehicle running smoothly.
Conclusion: Take Control of Your Tire Health
A car tire rotation diagram is your roadmap to longer-lasting tires, better safety, and cost savings. By rotating tires every 6,000–8,000 miles, you ensure even wear, improve fuel efficiency, and enhance handling. My journey from uneven tires to a smooth ride showed me the power of a simple diagram. With clear patterns and regular maintenance, you can avoid costly repairs and drive confidently. Whether you choose DIY or professional help, a car tire rotation diagram is your key to success. Start today—check your manual, grab a diagram, and schedule your next rotation. Share your tire rotation tips or experiences in the comments below, or spread this guide to help others keep their tires rolling strong!
Read More Also: Five winter tips for van drivers
FAQs
Why do I need a car tire rotation diagram?
A car tire rotation diagram shows the correct pattern to move tires, ensuring even wear and extending tire life.
How often should I rotate my tires?
Rotate tires every 6,000–8,000 miles or every six months, as recommended by most vehicle manuals.
Can I rotate tires myself?
Yes, with a jack, lug wrench, and car tire rotation diagram, DIY rotation is doable but requires care.
What happens if I don’t rotate my tires?
Skipping rotation causes uneven wear, reducing tire life, fuel efficiency, and safety, leading to costly replacements.
Where can I find a reliable car tire rotation diagram?
Check your vehicle’s manual or trusted websites for accurate diagrams.
